Qiyuan Q05

Changan Qiyuan Q05 – Pure Electric Specifications

Basic Information

• Vehicle Type: Compact 5-door 5-seat pure electric SUV

• Drive Layout: Front-wheel Drive (FWD)

• Steering: Left-hand drive (LHD)

• Body Structure: Monocoque

Dimensions

• Length × Width × Height: 4539 × 1865 × 1680 mm

• Wheelbase: 2756 mm

• Ground Clearance: 170 mm

• Trunk Capacity: 540 L (1380 L with rear seats folded)

Powertrain

• Motor Type: Permanent magnet synchronous motor

• Max Motor Power: 120 kW

• Max Motor Torque: 240 N·m

• Transmission: Single-speed reducer

• 0–100 km/h Acceleration: 8.1 s

• Max Speed: 160 km/h

Battery & Range

• Battery Type: Lithium iron phosphate (LFP)

• Battery Capacity: 40.3 kWh / 51.9 kWh

• CLTC Pure Electric Range: 405 km / 506 km

• Energy Consumption: 11.3–11.7 kWh/100km

Charging Performance

• DC Fast Charge (30%–80%): 28–35 minutes

• AC Slow Charge (0–100%): 6.5–8 hours

• Charging Port: Left side, AC + DC integrated

Chassis & Suspension

• Front Suspension: MacPherson independent suspension

• Rear Suspension: Multi-link independent suspension

• Steering System: Electric power steering (EPS)

• Brake System: Front ventilated discs + rear solid discs

Main Equipment

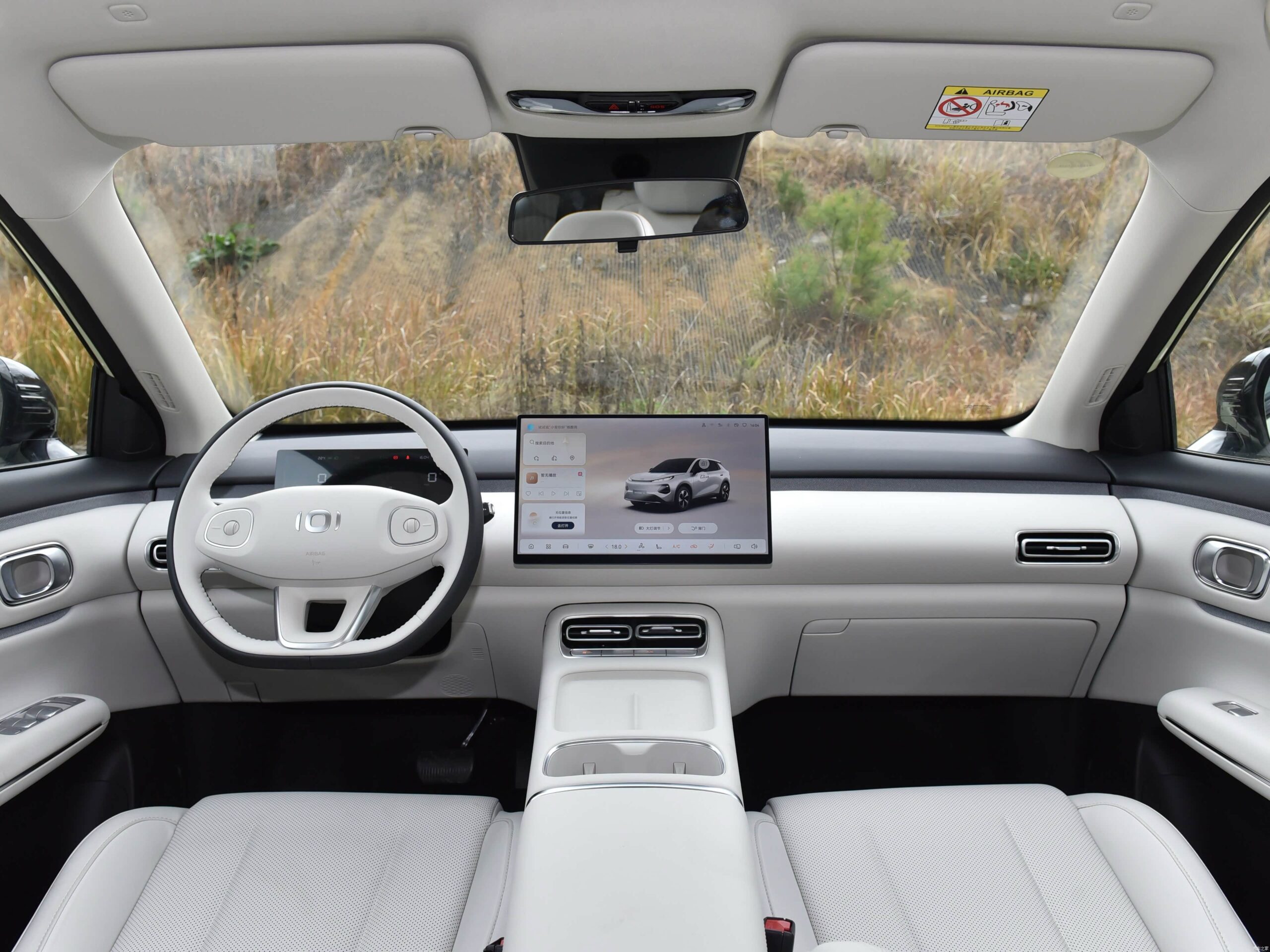

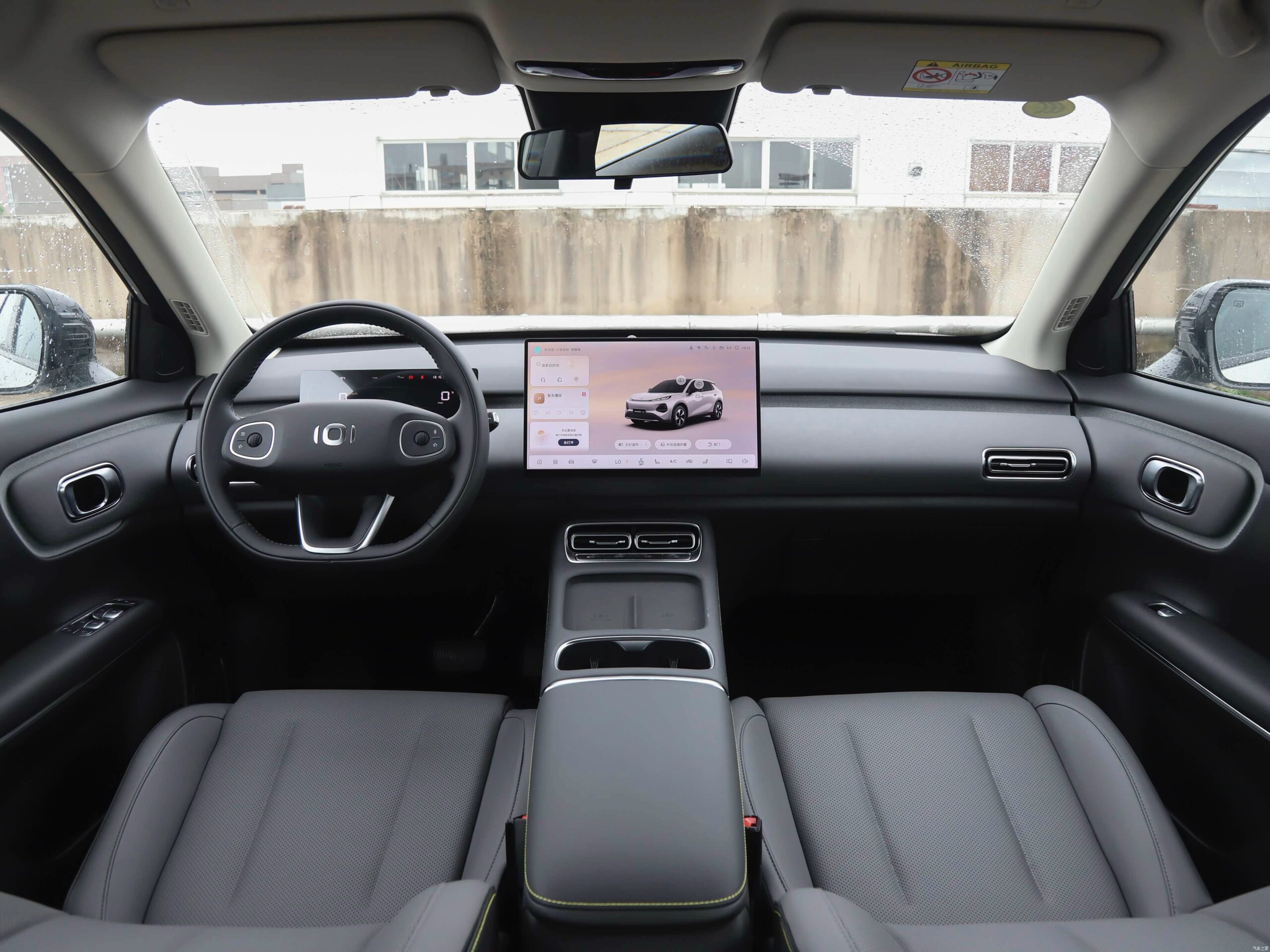

• Touch screen infotainment system with Bluetooth & smartphone connectivity

• Reversing camera / 360° panoramic camera

• Cruise control & L2 intelligent driving assistance

• Panoramic sunroof & electric tailgate

• Keyless entry & one-button start

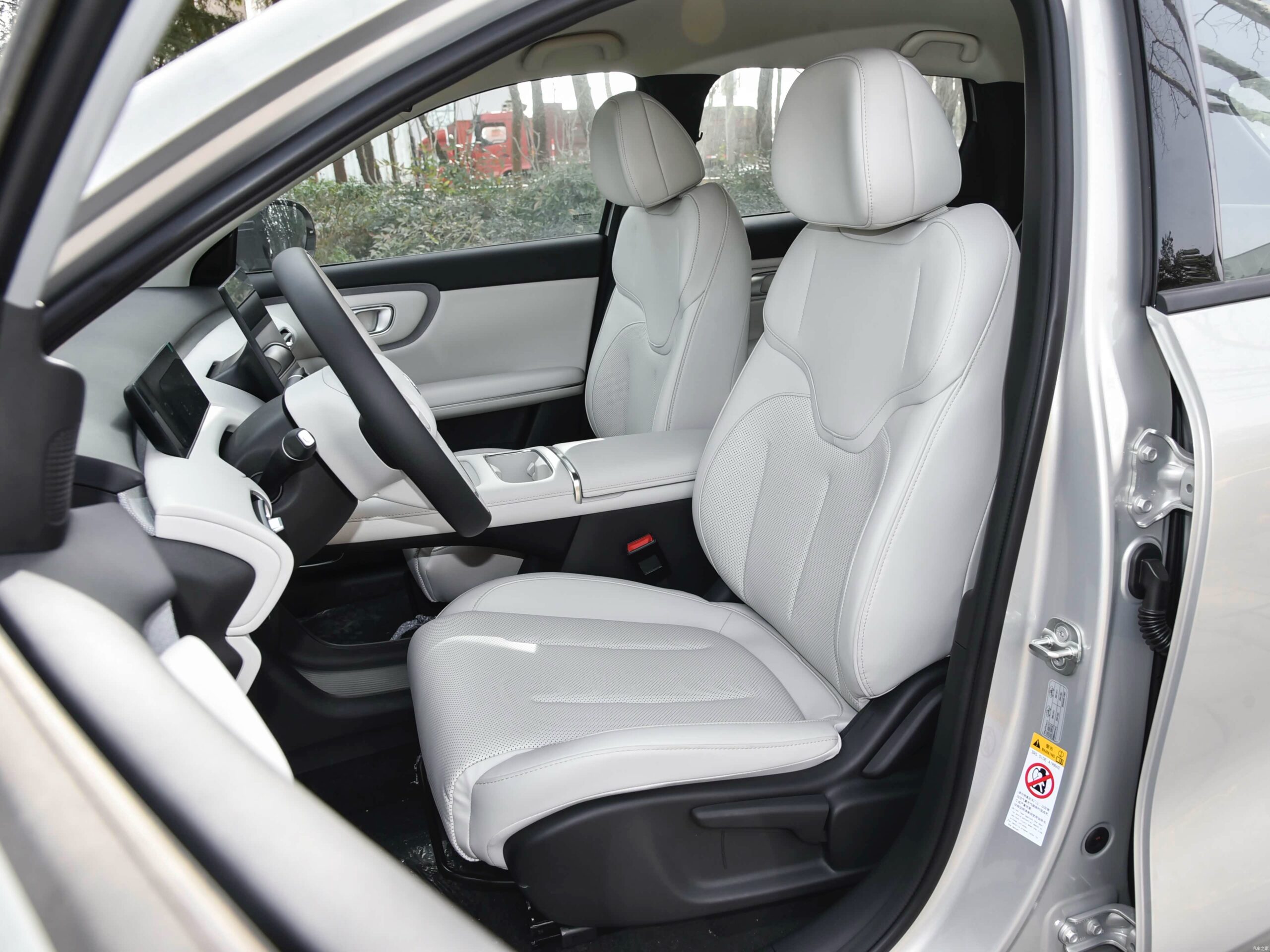

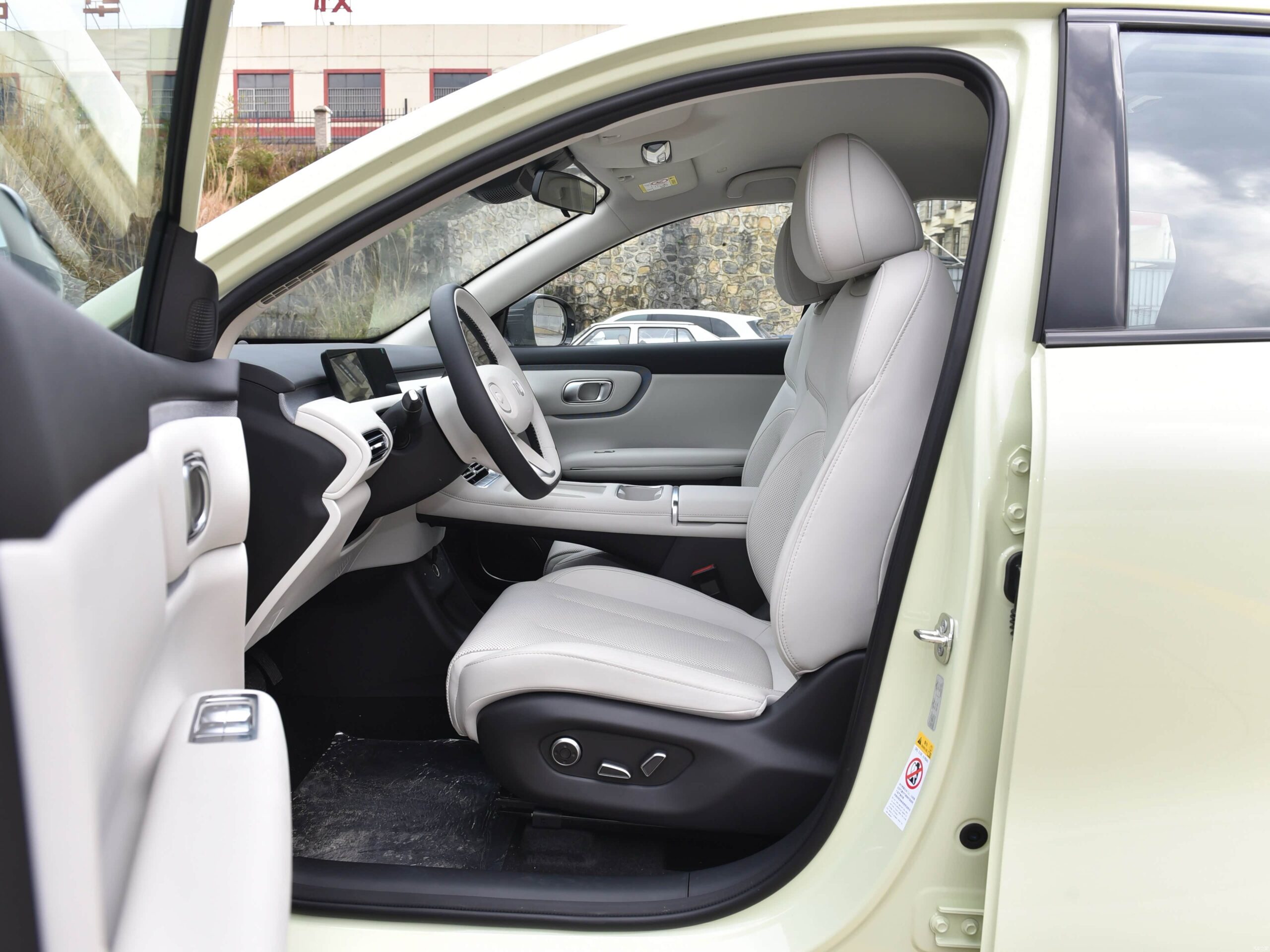

• Leather/fabric combined seats
